NR 241PVC Profile Machining Center


NR 241 Profile Machining Center;  Milling and cutting stations are designed to work independently and simultaneously, to perform all milling, drilling, reinforcement steel screwing, routing and marking operations on PVC profiles in a single, computer controlled machine. In this way, the machining performance of 5 operators in 5 different machines can be obtained from a single machine, ensures production speed and quality standardization, minimises labor cost.

NR 241 Profile Machining Center offers the possibility of stacking 10 profiles up to 6500 mm long on the loading belt. The servo motor controlled profile holder, which can be positioned horizontal automatically, has the ability to hold profiles of different designs and sizes and drive them into the machine.

Thanks to the sensor on the profile holder, the lengths of the long profiles placed on the loading belt can be measured automatically and taken into production. The system is offered with 19 ” high performance industrial PC with Windows 10 operating system, operating without fan between 0 ° C - 55 ° C, placed on an ergonomic unit designed independent from the machine, including a user-friendly interface developed by Haffner Machinery. Profiles to be milled and cut can be viewed on the  screen in 3D. It can work integrated with door and window software of different brands. Apart from these connections, data can be transferred to the machine using the USB port. With both vertical and horizontal pneumatic clamping pistons, the profiles are fixed in the best way and milling and cutting processes are made with minimum tolerance.

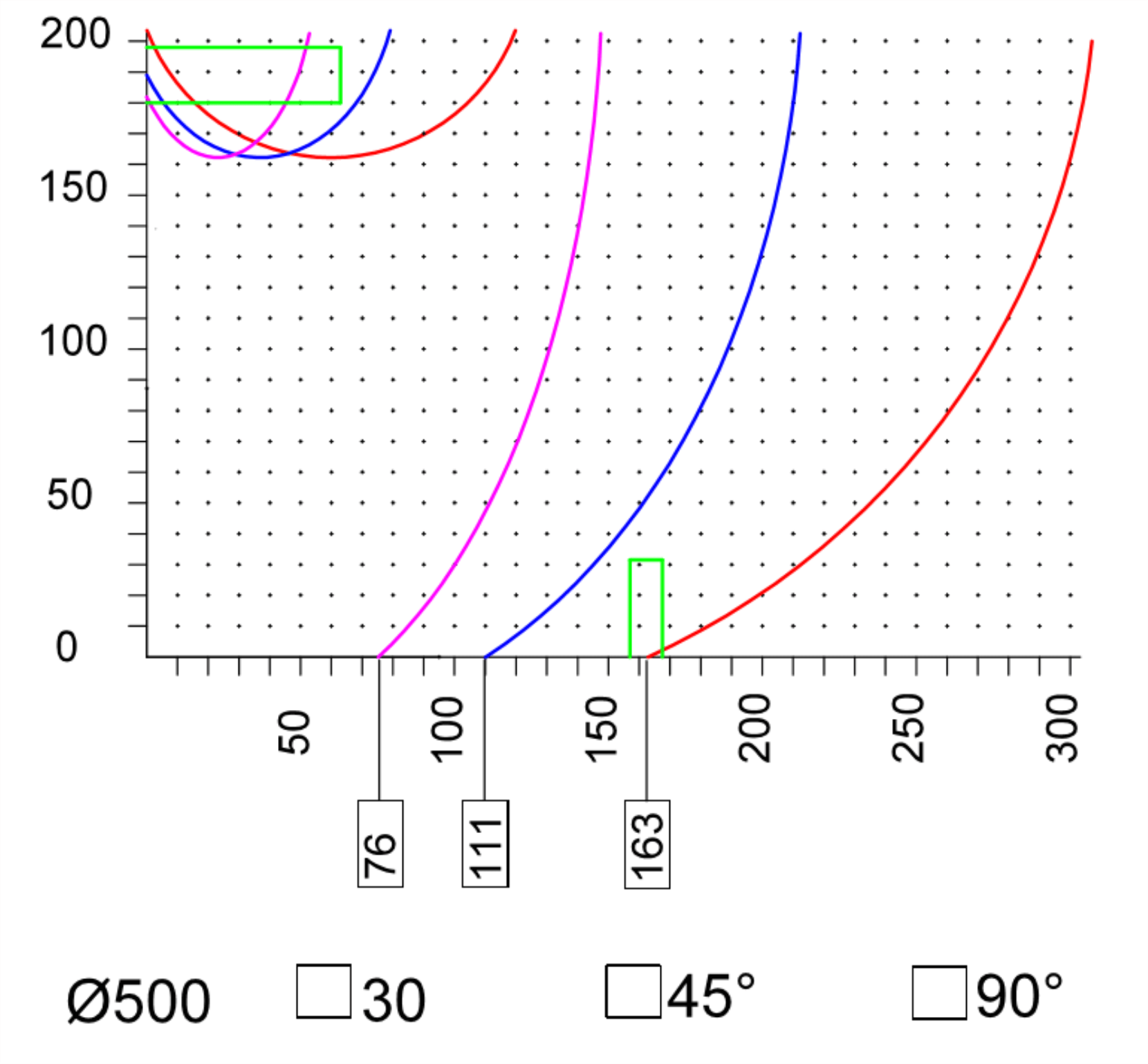

Thanks to the servo motors in the NR 241 Profile Processing Center cutting station, a vertical saw with a diameter of 500 mm with a precision of 0.1 mm can automatically cut at all angles between 30 ° and 150 °. Axes controlled by servo motors work with high speed and precision, ensuring a superior cutting result.

The barcode printer system, which works in integration with the machine, simultaneously writes barcode on the labels to be attached to the profile parts which are moved right in front of the operator. Barcodes are manually pasted on the profiles by the operator.

Production integration is achieved thanks to the readability of the barcodes by CNC Welding and Corner Cleaning machines.

Thanks to the second screen located in the transfer station, it is possible to easily follow the production. Profiles equipped with reinforcement steel and barcode are automatically transported to the milling station on the belt. It carries out all machining on the profile with maximum precision with 16 standard tools on the milling group. In addition to opening angled water discharge channels, it is aimed to increase the production capacity by simultaneously processing the mirror, cylinder and arm parts, that takes time to open especially in the door profiles. After the automatic reinforcement screw process, all operations on the profiles are carried out in the same station, including the mounting hole and triple drilling operations. Completed profiles are transported to the exit station with the profile holder. Waste parts are transported to the waste chamber by the automatic conveyor system. Service support with remote connection, problem detection and solution by connecting to the entire automation system is possible.

The operating system automatically cleans the unnecessary data of the last session at every startup and shutdown of the machine, ensuring maximum security measures against virus and operator errors. Daily backup is done automatically to the internal back up unit. The system provides the opportunity to control the production daily, weekly, monthly and yearly with the shift control system. There is a central lubrication system that facilitates machine maintenance.

End milling unit can be included optionally to the NR 241 Machining Center cutting station.

It can be turned into NR 242 Profile Processing Center by adding NR 210 Profile Machining Center as an option. In this way, in addition to all cutting and milling operations on the profiles, the production capacity can be doubled on the same machine. End milling unit can be added optionally in to the cutting station. The system can be turned into NR 242 Profile Processing Center by adding NR 210 Profile Machining Center. In this way, all cutting, routing and drilling operations on the profiles, can be performed and the production capacity can be doubled.
